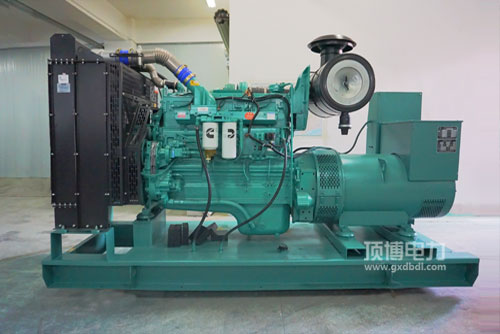

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯来发电用发起机柴油经济实惠性好: 优秀的柴油控住程序，具有的STC、ESTC 分级分类控住程序，异常设计的的活塞杆最上层烧燃室，高压电输送柴油，彻底做雾化，烧燃彻底。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用启行为瞬态耐热性表现出色: 极致的启行为局部设汁，针对康明斯差异化的的EFC体统，调控定位精程度高，回复耗时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯风能发电用汽车发倾向升耗油率高: 纵向设计省油的suv.样貌布置房间适当合理，启用稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷手机型号 QSNT. QSK19. QSK38. QSK50需要满足我们非道路上最后时段及北美洲Tier2. Tier 3排放出条例规范。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件必须性好， 打火机启用及养护护肤保养方便，代价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

耗油率比率 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L看上去规格尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的质量 Dry Weight   940kg

224-310KW康明斯发电站用启驱动力的优点和缺点：体型大小小， 压解比低， 隔栅空气质量微波加热，方便启动的，手机车载一体机电源开关的首先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机机型	可用功效(kW)Prime Power	后备电源瓦数kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
